Vortex Research HPS Water Jackets

At Vortex, we have the solutions for your lighting problems! Both conventional systems for high pressure sodium lights using water jacket cooling systems. Or our alternative e-light approach.

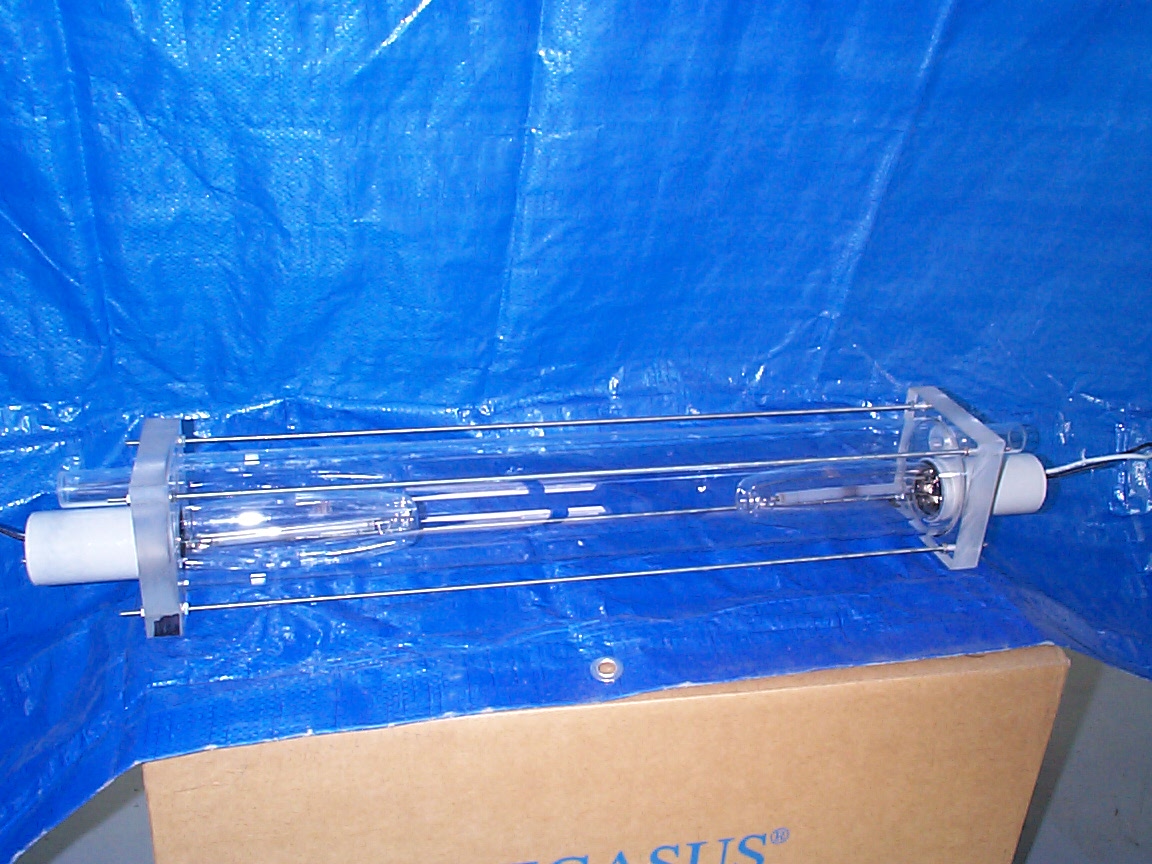

Conventional 430w high pressure sodium water jacket model.
This configuration provides approximately 450-500 micromoles at 4 feet
with a power density of about 100 watts per sq. foot (1000 watts/sq. meter).

We can accommodate 250w, 400w and 430w in the 4" diameter model. For 600w, 800w and 1000w configurations we use a 6" diameter unit. Both 4" and 6" diameter models come in single or dual bulb design and are provided with 1/2", 3/4" or 1" female N.P.T. fittings in each end. Cylinders are provided as required in either glass or acrylic (default is acrylic).

Available Models

Model

Total Watts

Bulbs

Diameter

Connection

HPS250-1-1

250

1

4"

1/2" FNPT

HPS250-1-2

250

1

4"

3/4" FNPT

HPS250-2-1

500

2

4"

1/2" FNPT

HPS250-2-2

500

2

4"

3/4" FNPT

HPS400-1-1

400

1

4"

1/2" FNPT

HPS400-1-2

400

1

4"

3/4" FNPT

HPS400-2-1

800

2

4"

1/2" FNPT

HPS400-2-2

800

2

4"

3/4" FNPT

HPS430-1-1

430

1

4"

1/2" FNPT

HPS430-1-2

430

1

4"

3/4" FNPT

HPS430-2-2

860

2

4"

3/4" FNPT

HPS430-2-2

860

2

4"

3/4" FNPT

HSP600-1-2

600

1

6"

3/4" FNPT

HSP600-2-2

1200

2

6"

3/4" FNPT

HSP800-1-2

800

1

6"

3/4" FNPT

HSP800-2-2

1600

2

6"

3/4" FNPT

HSP1000-1-2

1000

1

6"

3/4" FNPT

HSP1000-2-2

2000

2

6"

3/4" FNPT

HSP1000-2-3

2000

2

6"

1" FNPT

All models can be ordered directly from Vortex Research Inc.
Extra charges apply for custom orders.
Please contact us for price and delivery.

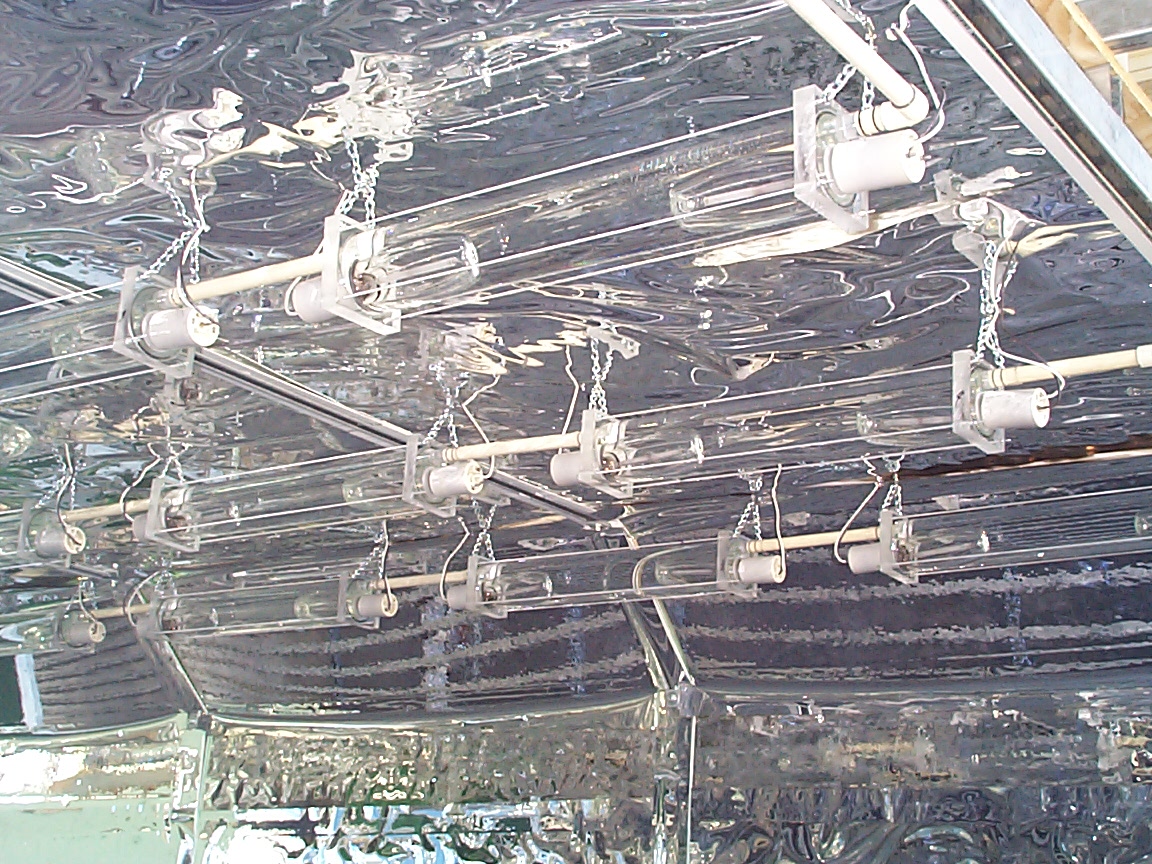

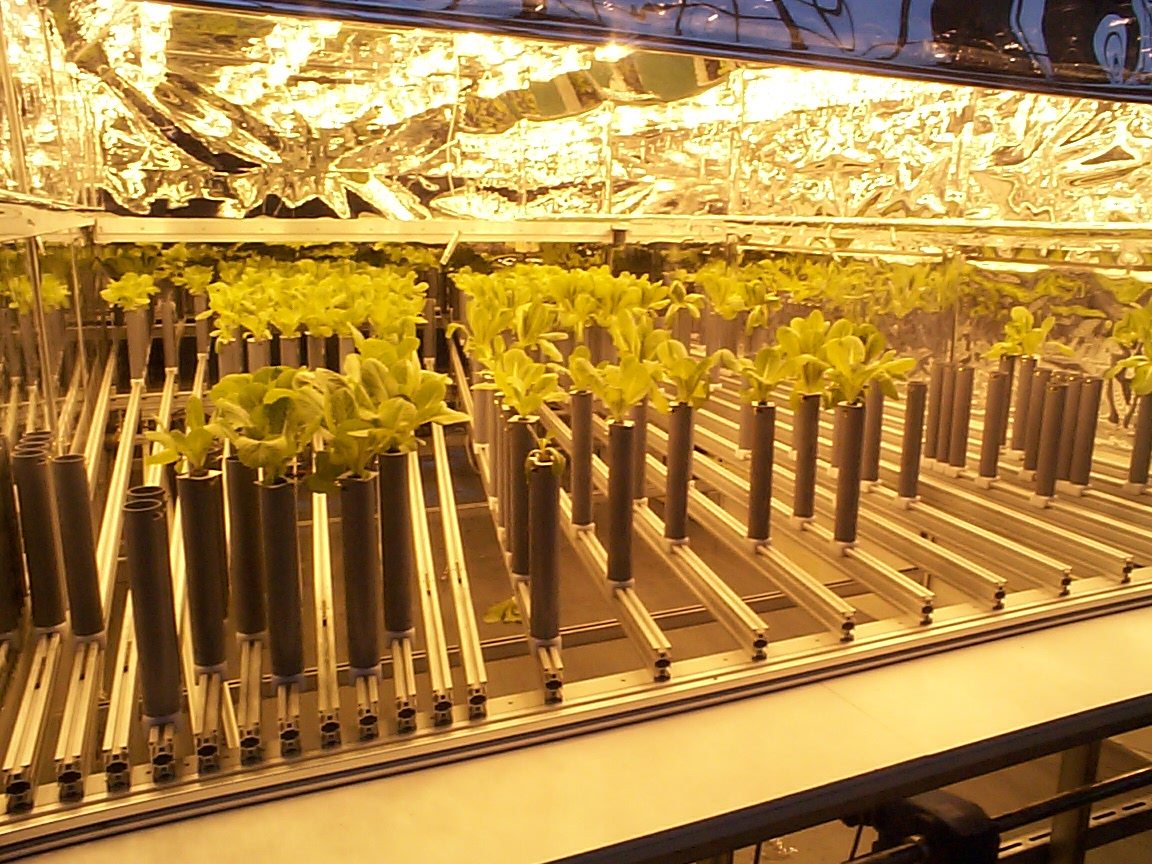

Vortex HPS water jacketed lamps in operation


In operation is a set of 24 dual bulb water jackets using 430w lamps (as shown above).
The system has an overhead of about 29 kilowatts. A similar system is being assembled that will use the
Vortex e-Lamp system and will require less than 5kw to operate.
